Hanna Water Wizard Arch Flyer

The Hanna Water Wizard™ Arch combines Hanna and Jim Coleman technology into a powerful yet cost effective high pressure water applicator. The arch utilizes Hanna’s exclusive oscillating spray head with multiple zero degree nozzles. High pressure allows penetration into areas brushes cannot reach like wheel wells, body side moldings and roof racks. The top manifold oscillates left to right and the side manifolds up and down scrubbing the complete vehicle surface. Both top and side manifolds pivot fore and aft to provide high pressure cleaning to the hard to reach front and rear of vehicles.

The Water Wizard™ Arch can also be used as a pre-wash arch to rinse away dirt, and help loosen stuck on dirt before the wash cycle. This can be helpful for areas with intensely dirty cars from dirt or even snow.

Construction

  • Stainless Steel Frame
  • Optional Stainless Steel “Skins” w/ Graphics
  • Hydraulic Drive or Electric Drive

Standard Dimensions

Operating Space: 8’ (243 cm)
Width: 157” (398 cm)
Length: 20” (51 cm)
Height: 113” (287 cm)
Height Clearance: 96” (243 cm)

  • Hydraulic or electric driven oscillating motion
  • Air operated pivots
  • Five oscillating spray heads
  • Four wheel washing spray heads
  • Custom graphics available

Hydraulic Flow: 3.0 GPM @ 200 PSI
(11.4 LPM @ 14 BAR)
Electrical: 60 Watts @ 24 VAC
Air: Less than 1 SCFM @ 90 PSI
Water: 35 GPM @ 1000 PSI
(133 LPM @ 69 BAR)

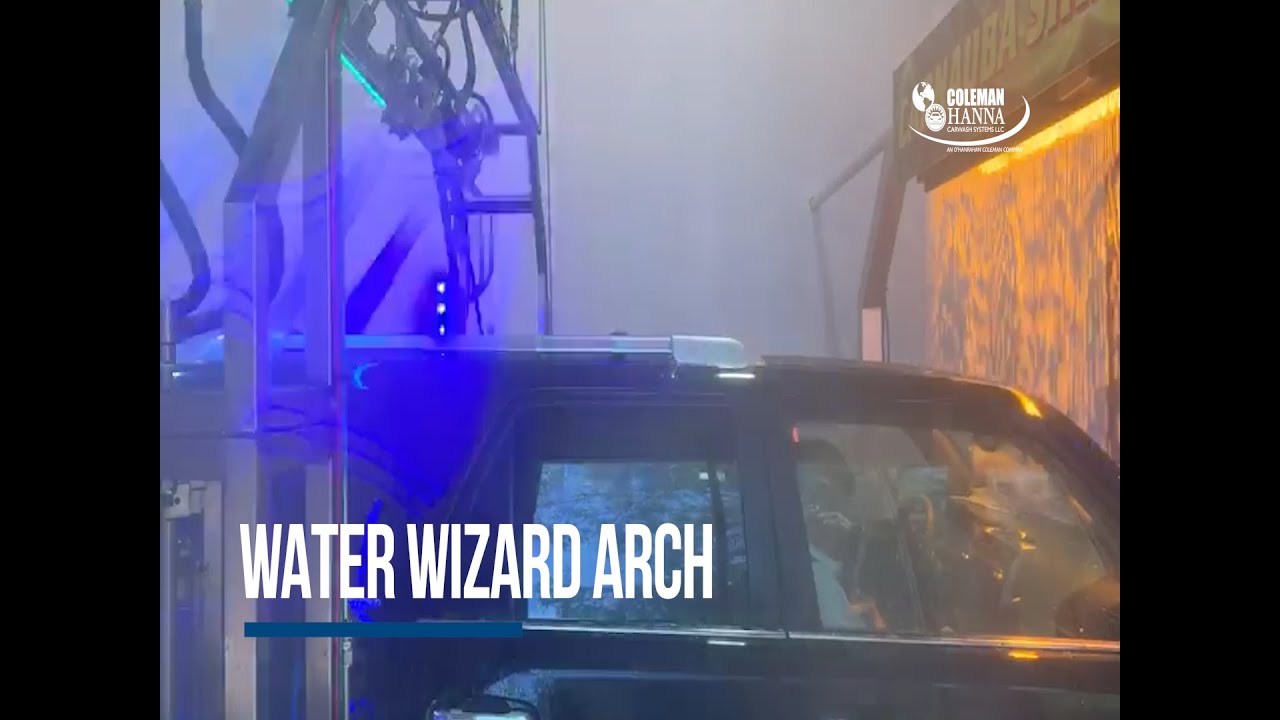

Water Wizard Arch
