In Bay Tunnel

Wash 30-60 cars per hour in the size of most bays with the In Bay Tunnel!

Hanna’s In Bay Tunnel™ is designed to fit in the same space as most in bay automatics and is capable of washing 30 to 60 vehicles per hour depending on the building and conveyor length. Utilizing the most productive combination of Hanna components the In Bay Tunnel™ is more than capable of producing the results that were previously not attainable with roll over systems. If you are sick and tired of experiencing drive off customers due to their waiting in line as they slowly move toward the wash process of your in bay automatic then Hanna’s In Bay Tunnel™ is your answer to higher profits. Newer technologies in wash processes are allowing the In Bay Tunnel™ to use a low price point as a draw and still offer the extra services to get the average per car revenue higher than was previously available.

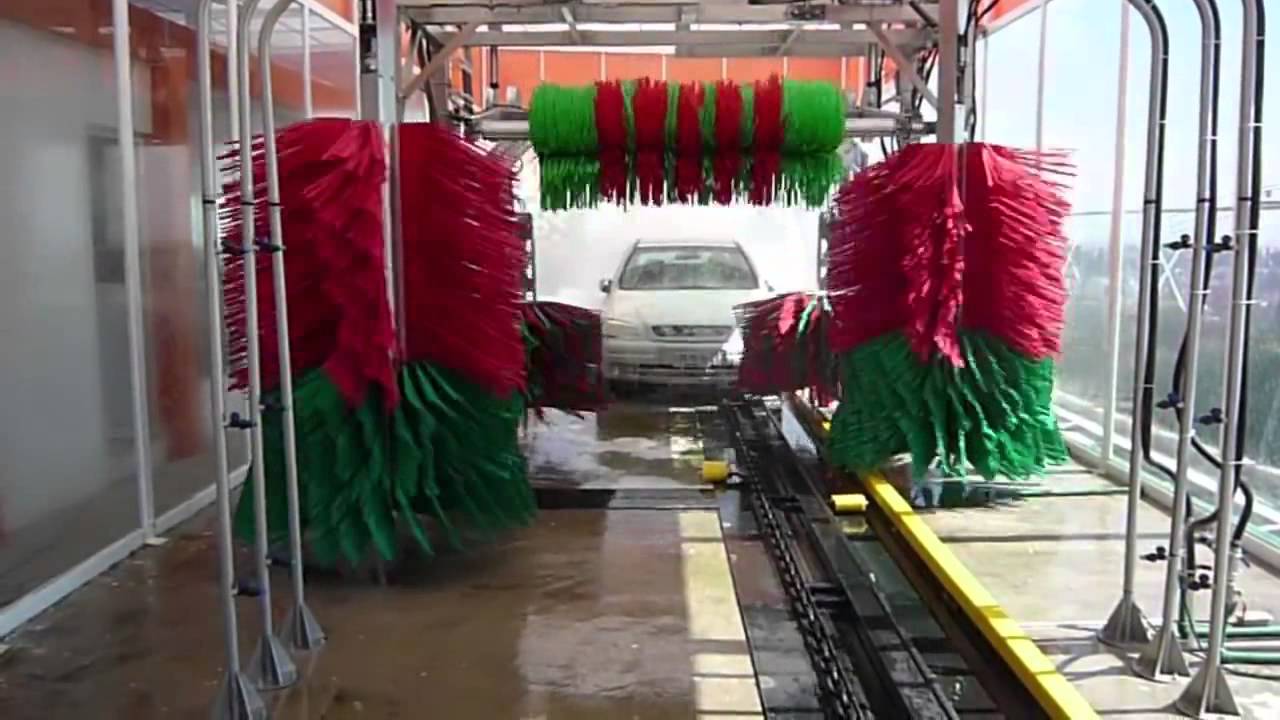

Shown is a rear wheel push over and under conveyor. The system can also utilize front wheel pull as well as surface conveyors. Every location is different and should be analyzed accordingly. Coleman Hanna has a long history in tunnel systems as well as in bay automatics. Doesn’t it make sense to deal with a company that has long and proven successes in both types of equipment to help evaluate what is best for your business model and be site specific.

Hanna offers these In Bay Tunnel packages to fit bays 28’, 35’, and 40’ in length. All three packages can be modified to suit individual needs. The packages show front wheel drive but can be changed to rear wheel push. Hanna recommends a rear wheel push conveyor if the site allows enough turning radius for the vehicle to enter the conveyor.

28' In Bay Tunnel

InBayTunnel

Primary Equipment:

  • Correlator
  • Conveyor
  • Entry Eyes
  • Wheel Detector
  • Graphics Arch
  • Tire & Wheel CTA
  • Short Stack
  • Top Brush
  • 28” Hub Cap Rocker Panel
  • Undercarriage
  • Hydrablast
  • Versa Arch
  • Rain Header
  • Air Dryers
  • Collision Avoidance
  • Optional Dual Prep
  • Optional Spot Free

35' In Bay Tunnel

In Bay Tunnel 35ft 3D Drawing

Primary Equipment:

  • Correlator
  • Conveyor
  • Entry Eyes
  • Tire & Wheel CTA
  • Top Brush
  • 21” Hub Cap Rocker Panel
  • Single Foamer
  • 4 – Pack
  • Undercarriage
  • Versa Arch
  • Rain Header
  • Air Dryers
  • Collision Avoidance
  • Optional Dual Prep
  • Optional Spot Free

40' In Bay Tunnel

In Bay Tunnel 40ft 3D Drawing

Primary Equipment:

  • Correlator
  • Conveyor
  • Entry Eyes
  • Soap Foamer Versa Arch
  • Tire & Wheel CTA
  • 28” Hub Cap Rocker Panel
  • 4 – Pack
  • Undercarriage
  • HSS Mitter
  • Stepped Tire Washer
  • Versa Arch
  • Rain Header
  • Air Dryers
  • Collision Avoidance
  • Optional Dual Prep
  • Optional Spot Free

CAD Drawing:

In Bay Tunnel Drawing

In Bay Tunnel
