Conveyors & Correlators
Rely on the quality of Coleman Hanna for your conveyors and correlators. Most tunnels utilize a conveyor to maintain a consistent speed and guide the customer through the wash. Correlators help the vehicle load onto the conveyor. Coleman Hanna offers C-3 Correlator and Roller Correlator.
Hanna designed and built the first legendary RCV Conveyor (over & under on demand) in the world in the 1960’s and held the original patents for the design. Most conveyors in the market today
are some form of a copy of that conveyor.

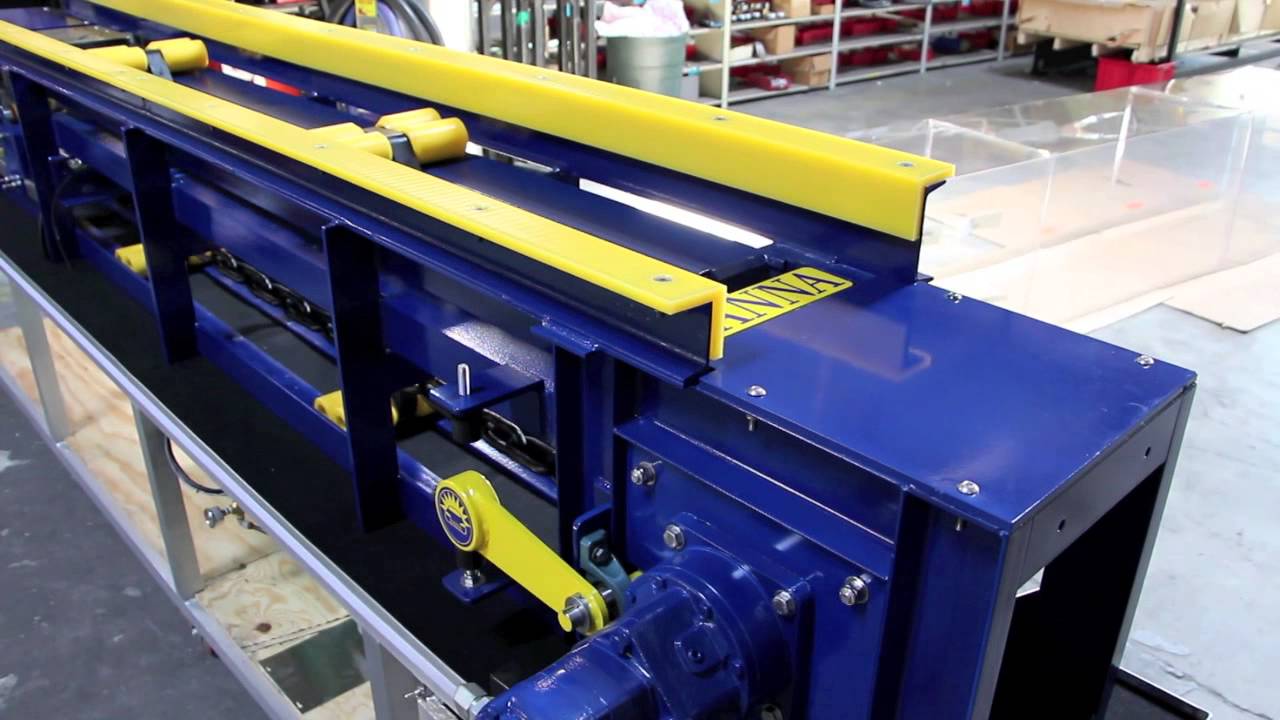

Today’s RCV Conveyor built by Coleman Hanna Carwash Systems continues the legacy with new and innovative ideas that provides the motorist and entrepreneur with a safe and effective way of conveying the vehicle through the different types of wash systems.
Today’s designs include the safety features of the EZ-Up Door™ and the Disappearing Exit Door™.

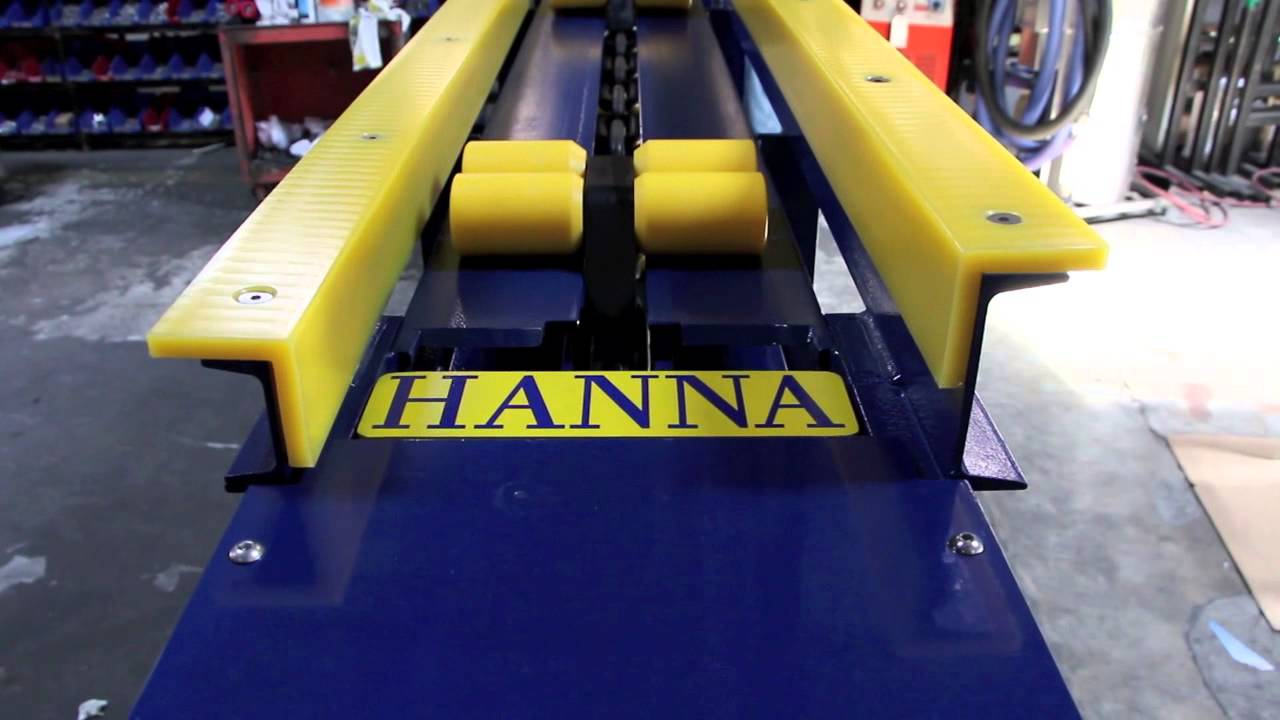

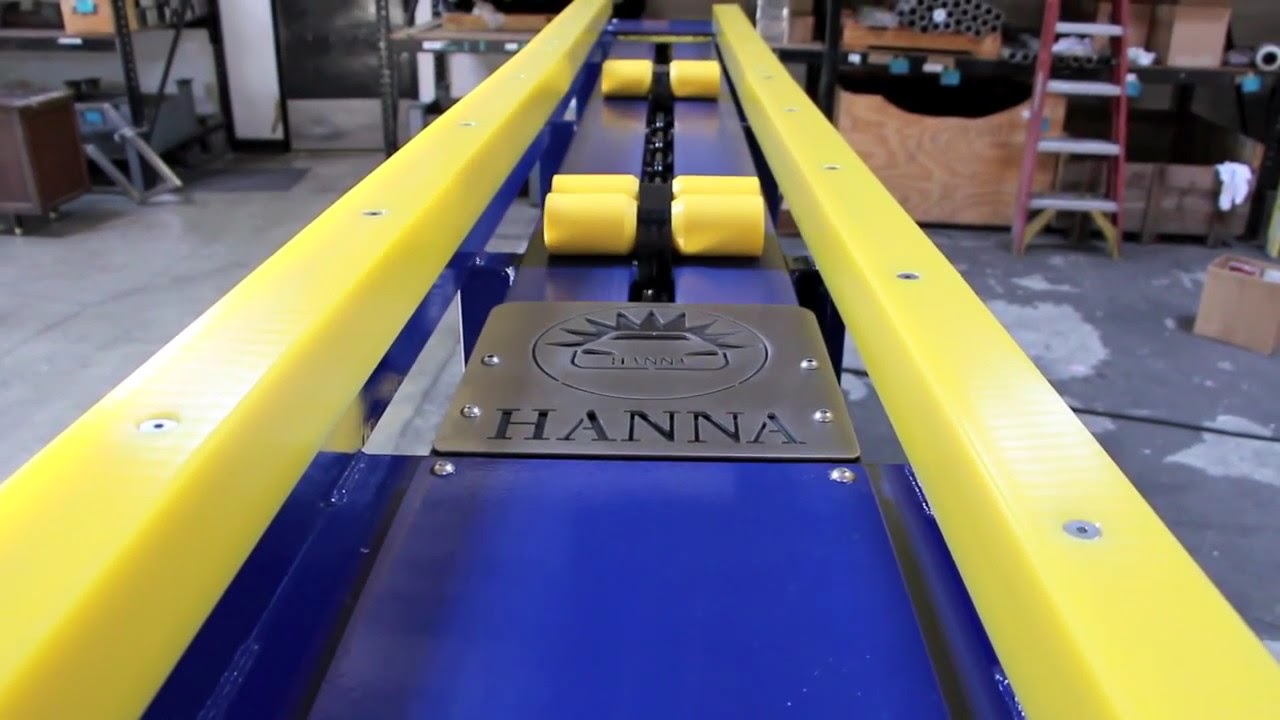

The Hannatron™ cover on the outside guide rail provides a clean slippery surface to help protect wheels and tires.

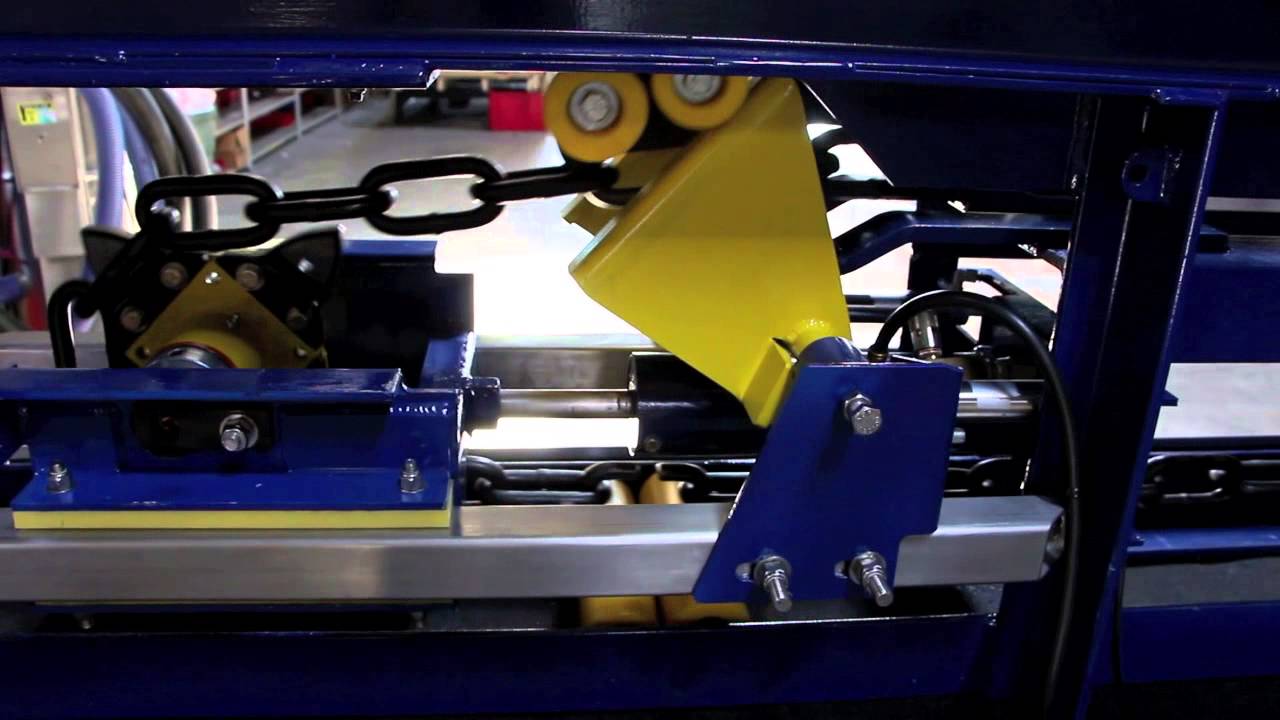

Also, the addition of the anti-jam forks adds to the overall reliability of the conveyor. The entrance rails have been widened from the standard 13” width to 16” for ease of entry. The RCV Conveyor comes standard with the 88k chain and you have the option to upgrade to X-458 or log chain. Similarly, the standard 13” width is now available in 14” width. An optional removable tooth sprocket is available which will fit future changes and accommodate your choice of two, four, or six wheel pushers. Lastly, a Smooth Glide Takeup has been added to provide a constant chain tension for all conveyor lengths.
For the latest in Conveyor Technology, trust the years of experience and knowledge of Hanna!
To see these safety features in action, check out the videos in the slider below:
Features:
- Front Wheel Pull (FWP) or Rear Wheel Push (RWP) – Specify at time of order
- Six-wheel low profile pusher assembly is standard. High profile pushers are optional
- Quiet rubber entrance door reinforced with 1/4 steel plate
- Disappearing exit door (not available with 6 wheel pusher)
- Anti jam forks
- D88K chain is standard
- Hannatron plastic outside guide rail & polyethylene chain guides
- 20” (50.8cm) standard depth
- 12-7/8” (32.7cm) track opening, 3/8” thick steel construction
- 14” (35.5cm) track opening, 3/8” thick steel construction optional
- Includes Stainless Steel roll bar assembly and roller raiser panel
- LOG Chain now available as an option
- 458 chain is now available as an option
- Six wheel pushers with drilled and tapped axles and M-2 attachments
Technical Notes:
- Drive and Take-Up Sections are 10’ (304.8cm) long
- Standard Center Sections are 10' long
- Special length Center Sections are priced at the per foot cost
- “Remote” Roller Raiser Control Box is purchased as an option and is not included in conveyor pricing
- Available in hydraulic drive only
- International orders must specify if Right Hand Drive is needed
- All leveling material (shims, grout, etc.) to be provided locally
- Trench covers and conveyor angles not included and must be purchased locally by the customer
- Refer to concrete & installation drawings for proper operation
- Does not include pulse switch
- Now Available in 14" width as an option
- Drive, Take-Up and Center Sections are available as replacement items
- Drive and Take-Up Sections are 10’ (304.8cm) long
- Standard Center Sections are 10' long
- Chain and Pushers are not included and are sold separately
Features:
- Front Wheel Pull (FWP) or Rear Wheel Push (RWP) – Specify at time of order
- Six-wheel low profile pusher assembly is standard. High profile pushers are optional
- “Foot Forgiver” trap doors
- D88K chain is standard
- Hannatron plastic on both inside and outside guide rail
- 20” (50.8cm) standard depth
- 12-7/8” (32.7cm) track opening, 3/8” thick steel construction
- Includes Stainless Steel roll bar assembly and roller raiser panel
- Six wheel pushers with drilled and tapped axles and M-2 attachments
Technical Notes:
- Drive and Take-Up Sections are 10’ (304.8cm) long
- Standard Center Sections are 10' long
- Special length Center Sections are priced at the per foot cost
- “Remote” Roller Raiser Control Box is purchased as an option and is not included in conveyor pricing
- Available in hydraulic drive only
- International orders must specify if Right Hand Drive is needed
- All leveling material (shims, grout, etc.) to be provided locally
- Trench covers and conveyor angles not included and must be purchased locally by the customer
- Refer to concrete & installation drawings for proper operation
- Does not include pulse switch
- Drive, Take-Up and Center Sections are available as replacement items
- Drive and Take-Up Sections are 10’ (304.8cm) long
- Standard Center Sections are 10' long
- Chain and Pushers are not included and are sold separately - See Below

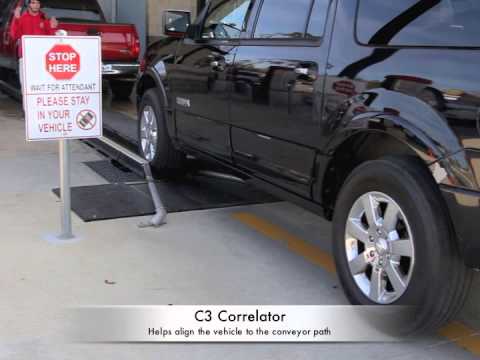

The front and rear wheels of a vehicle have 12 inches of lateral movement, ensuring proper alignment onto the conveyor. The C-3 Correlator is designed for years of reliable performance. It is manufactured using solid steel construction and has eighteen cast iron wheels supporting a spring loaded spring loaded top deck.
Designed for safety as well as function; the 3 foot wide by 12 foot long heavy gauge diamond plate steel top plate design reduces the potential for customer and operator incident. The wide design provides for virtually any vehicle size and shape, while the low profile allows for minimum installation preparation.
- Heavy gauge steel painted
- Diamond plate, spring loaded top deck
- 18 cast iron support wheels
- 12” (30.48 cm) maximum lateral movement
| Width: | 12’ (366 cm) |
| Length: | 3’ (91 cm) |
| Height: | 6” (15 cm) |
| Standard Clearance: | 90” (229cm) |
| Optional Clearance: | 96” (244cm) |
Hanna’s Roller Correlator ensures the vehicle enters the conveyor properly using yellow UHMW Rollers or Steel Rollers. The Steel Rollers can come with either painted steel or galvanized. Upgrade an existing C3 Correlator to the new roller design to improve functionality. The C3 Design frames include yellow fiber glass grating
to complete the conveyor.
Features:
- Yellow UHMW Rollers or Steel Rollers
- Steel Rollers – Painted steel or Galvanized
- Upgrade your existing C3 correlator to the new Roller design
- The C3 frames below include yellow fiberglass grating
Introducing The Positrack, a Hanna innovation for the car wash industry.
The New Hanna Heavy Duty Car Wash Belt Conveyor for Trucks and Duallies.
Features:
- Galvanized Steel Top Plates and Frame
- Heat Treated Steel Heavy Duty Sprockets
- Plated Steel Chains
Click to Download
For an overview of our tunnel components, please submit your email. Your download will be sent to your email after submission. Thanks!
Contact Coleman Hanna today!
