The 4-Pack Flex Wrap combines a set of flex wrap brushes and angled side brushes in a space slightly larger than a flex wrap brush alone. This unique configuration packs four counter rotating 70” washers within 13 feet of conveyor space.

The Flex Wrap brushes and Angled Side brushes actually rotate in opposite directions. This counter rotating brush action cleans better in areas like the front and back of mirrors as well as the outer wheel well and rocker panel areas. Hanna’s exclusive cloth cut allows for faster brush rotation and cleaning action without increasing vehicle incident.

The Hanna 4-Pack Flex Wrap has a high pivot point that allows the brush to move smoothly around the outer edges of the vehicle. This increases cleaning action on the front and rear of all vehicles. Enhanced controls offer separate retract and extend pressures for each arm as well as float pressure for the mirror area. Hanna’s Angled Side Brushes contour to the shape of all vehicles and is taller than most side brushes. This allows better cleaning of the top side window area of sport utility vehicles and mini vans. The 4-Pack system is available as a free standing component.

Speed 50 – 60 RPM
Hydraulic 6 GPM (22.7 L/min)
Pneumeatic .02 CFM (91.0 L/min @ 3 bar)

Angled Side Washer

Speed 40 – 50 RPM
Hydraulic 3.0 GPM (9.51 L/min)
Water 12 GPM @ 40 PSO (91 L/min)
  • Aluminum or Stainless Steel frame, gussets, and posts
  • Stainless Steel Arms and Shaft Assembly
  • Hanna Soft Cloth (Optional: Lite-Foam or Neo Glide
  • Hydraulic
Operating Space 13” (396 cm)
Standard Vehicle Clearance 90” (229 cm)
Optional Vehicle Clearance 96” (224 cm)
Width 12’ 2” (371 cm)
Length 13’ (396 cm)
  • Counter rotating brushes
  • High pivot point for smooth brush travel

4PackBrochure

4 Pack Flex Wrap

Please provide an email address where we should send the download link.


AngledSideBrush

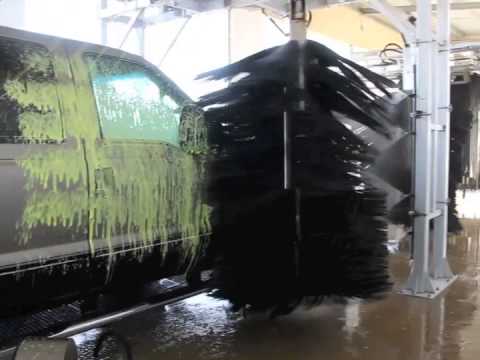

Hanna’s Angled Side & Window Brush is similar to the Horizontal Side & Window Brush, only angled toward the vehicle to follow the contour of its surface. It uses a combination of gravity and a special dampening shock to provide proper brush penetration and safely clean hard to reach areas like the top of the vehicle’s side windows. The 70” brush height in combination with the angled brush assembly allows better cleaning of the top side window area of sport utility vehicles and mini vans.
  • All stainless steel frame construction.
  • ASWB has a 70” (1.78m) brush assembly
  • One size fits all with 122” of physical clearance for all standard vehicles
  • Hydraulic Drive
  • Gravity operated with cushioning shock
  • Includes spray manifold and jets
  • Includes Water & Hydraulic Plumbing
  • ASWB supplied with shock pivot system standard
  • Pneumatic Retracts are not available
  • Hydraulic flow controls and solenoid valves are included in proportionator pricing or purchased separately
  • Stainless Steel Frame
  • Operating Space Required – 7’ (213 cm)
  • Brush Height – 70” (177.80 cm)
  • Overall Height – 10’6” (3.21 m)
Top Brush Panel 24”/28” X 42” (61 cm/71 cm x 107 cm)
Bottom Brush Panel 22”/18.5” X 28” (56 cm/47 cm x 71 cm)
Top Core 8” x 42” (20.32 cm x 107 cm)
Bottom Core 10” x 28” (25.40 cm x 71 cm)
Hydraulic Flow 3.0 GPM (11.4 LPM)
Speed 40 – 50 RPM
Brush Material
  • Hanna Soft Cloth
  • Foam
  • Neoglide Brush

AngledSideBrushBrochure

Angled Side Brush Brochure

Please provide an email address where we should send the download link.


Hanna’s Focus Flex Wrap uses one set of opposed flex wrap mounted on a single frame. The compact design allows maximum cleaning of the vehicles vertical surfaces utilizing the least amount of conveyor space. Each wrap has a high pivot point that allows the brush to move smoothly around the outer edges of even the largest vehicle. Hanna’s exclusive cloth cut safely allows for a faster brush rotation and cleaning action. Enhanced controls offer separate arm retract and extend pressures as well as float.

Features:

  • Stainless steel or Aluminum
  • Stainless steel brush arm & shaft
  • Hydraulic drive

Assembly:

Operating Space 13’ (396 cm)
Optional Clearance 112”
Width 12’10” (391 cm)
Length 11 (280 cm)
Height 10’6” (320 cm) to compensate for low water pressure
Hydraulic Rated Flow 6 GPM

FocusFlexWrapBrochure

Focus Flex Wrap

Please provide an email address where we should send the download link.


GrillSideWasher

Eliminate the Expense, Time and Labor to Prewash Grills, License Plates, and Headlights as well as to Remove Bugs and other Caked on Road Grime!

GrillSideWasherdrawing
Hanna’s Grill Washer is two washers in one. It follows and cleans the complete front vertical surface of the vehicle safely and then follows smoothly and safely to wash the tall side surfaces. Hanna’s standard 70” brush height allows for cleaning of high SUVs and Vans.

It is gentle and does not bend license plates because the washers rotate at the vehicle like a side brush (in the opposite rotation of the flex wrap brushes) and provide the necessary force to clean with no prepping. It can be fitted with Hanna Soft Cloth or Lite Foam material. Simple Shocks and Pneumatic controls allow the operator the flexibility to control pressure against the vehicle. For operators who own a Hanna Side Washer or Angled Side Washer, a kit is available to convert the component. Check with your Hanna representative to make sure there is enough tunnel space.
Like all Hanna components the Grill brush is built to last a generation. Compare the build quality, wash coverage and simplicity. Hanna proves once again that Nothings Tougher™.

  • Stainless Steel
  • Operating Space Required: 10’
  • Brush Height — 70” (177.80 cm)
  • Overall Height — 10’6” (3.21 m)
Top Brush Panel 24”/28” X 42” (61 cm/71 cm x 107 cm)
Bottom Brush Panel 22”/18.5” X 28” (56 cm/47 cm x 71 cm)
Top Core 8” x 42” (20.32 cm x 107 cm)
Bottom Core 10” x 28” (25.40 cm x 71 cm)
Hydraulic Flow 3.0 GPM (11.4 LPM)
Speed 50 RPM
Cloth Type
  • Hanna Soft Cloth
  • Lite Foam

GrillSideBrochure

Grill & Side Washer

Please provide an email address where we should send the download link.



The Hubcap Rocker Panel Brush (HCRP) gives special cleaning attention not only to rocker panels, but also to hubcaps and deep rimmed wheels. Even though lower vertical surfaces vary greatly in contour from one vehicle to another, the design of the Hubcap Rocker Panel Brush ensures that the rocker panel area is clean on every car, regardless of size or shape.

The HCRP comes in three sizes 21”, 28” and 35”. Shorter brushes penetrate deeper into the wheel wells and create more friction on the wheel and tire – while taller HCRP brushes reach higher vertical surfaces. The Lower portion of each HCRP brush has a wider and longer cut to allow better penetration in the wheel well area wheel including the tires and wheels.

Tension against the vehicle is achieved by an adjustable shock and spring assembly. There is also an adjustable stop bracket to set the rest position. The HCRP can be ordered free standing or post mounted.

HubCapRockerPanelDrawing

HubCapRockerPanelBrochure

Hub Cap Rocker Panel Brochure

Please provide an email address where we should send the download link.


ShortStack

Pack A LOT of cleaning power in a small tunnel space with the Short Stack Flex Wrap!

Hanna’s Short Stack Flex Wrap was
designed to maximize your tunnel space by combining proven high performing cleaning equipment into one frame. This system starts with two side brushes with the ability to add additional equipment without adding to the tunnel required length. The operator can easily add S20 Mitter, Top Brush, Tire Washer, High Pressure Wheel Washer to the Short Stack Flex Wrap. The driver side and passenger side brush arms are offset allowing separation between brush assemblies. Enhanced controls offer separate retract and extend pressures for each arm as well as float pressure for the mirror area.

Features:

  • One size fits all with 112” of physical clearance for all standard vehicles
  • Some added components may alter clearance height
  • Hydraulic Drive
  • Available in both Stainless Steel and Aluminum frames
  • Foam upgrade option
  • The Short Stack Flex Wrap has a 70” (1.78m) brush assembly
  • Includes spray manifold and jets
  • The Short Stack Flex Wrap requires 5 computer functions, added components may require additional
  • Hydraulic flow controls and solenoid valves are included in proportionator pricing or purchased separately

ShortStackBrochure

Short Stack Flex Wrap Brochure

Please provide an email address where we should send the download link.


SideWindowBrush

SideWindowBrush

SideWindowBrush

Hanna’s Side & Window Brush is one of the most popular brush components in the industry. It provides superb cleaning coverage of the upper side, side and rocker panel areas of a vehicle. The 70’ brush height is higher then other side brushes allowing for
better cleaning of today’s taller vehicles. Hanna’s exclusive cloth cut also allows for a faster brush rotation and cleaning action. Tension against the vehicle is achieved by an adjustable shock and spring assembly. There is also an adjustable stop bracket to set the rest position.

  • All stainless steel frame construction.
  • SHWW brush has a 70” (1.78m) brush assembly
  • One size fits all with 122” of physical clearance for all standard vehicles
  • Hydraulic Drive
  • Shock & Spring operated for simple operation and easy installation
  • Pneumatic Retracts available
  • Includes spray manifold and jets
  • Includes Water & Hydraulic Plumbing
  • Hydraulic flow controls and solenoid valves are purchased separately.

SideWindowBrushBrochure

Side & Window Brush Brochure

Please provide an email address where we should send the download link.


StackNScrub

Install the Stack-N-Scrub, the most versatile component in the tunnel industry, to wash the most cars in the shortest amount of space!

StackNScrub

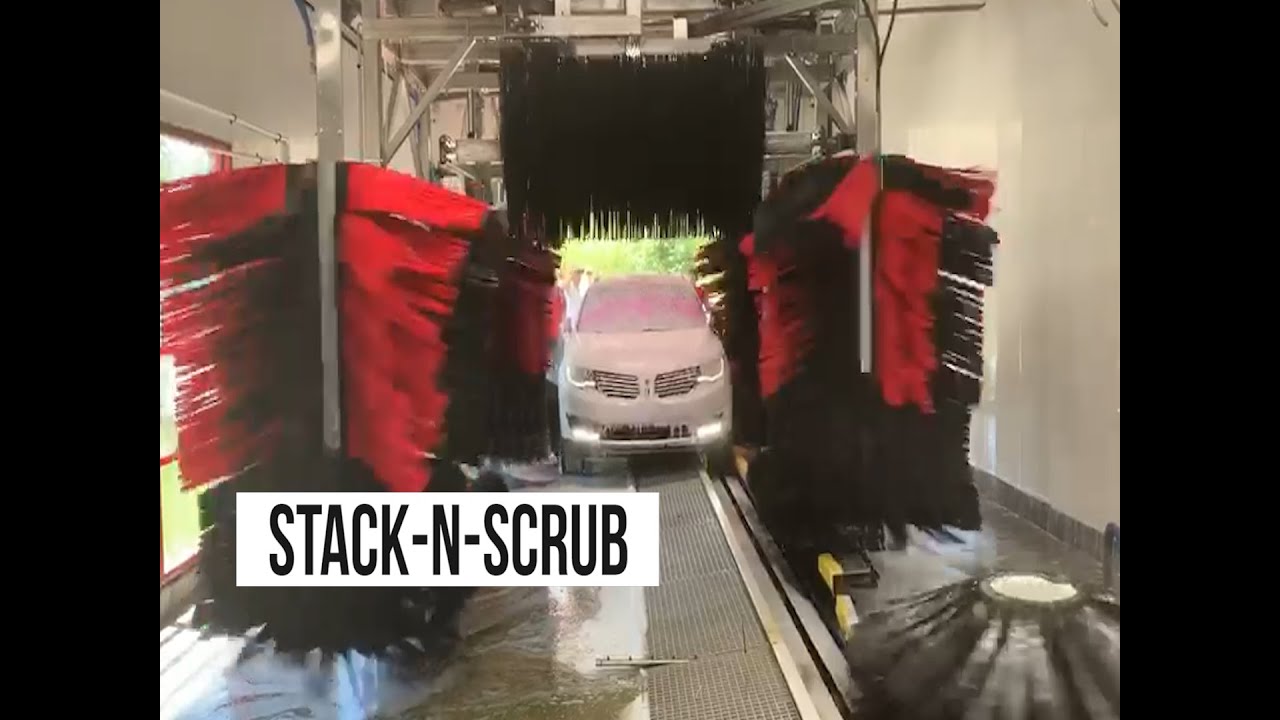

Hanna’s Stack-N-Scrub (SNS) Flex Wrap is a free-standing component designed to retrofit automatic bays and pack tremendous cleaning power in a small space. Our highest selling and most popular component the Stack-N-Scrub helps existing operators compete with the fast pace Express conveyor market as well as provide the new investors with a compact washing system suitable for a variety of property sizes.
The Stack-N-Scrub offers more flexibility than any other component. The Stack-N-Scrub features two sets of opposed flex wraps on aluminum or stainless steel frame and allows the operator to stack or combine a wide variety of wash components such as the Top Brush, Hub Cap Rocker Panel, Stepped Tire Brush and many more.
The Stack-N-Scrub is ideal for conveyors from 50’ to over 150’ in length and for speeds from 40-180 cars per hour. With the industry’s largest distributor network, Hanna provides the local expertise to guide you through the steps from site selection through opening day.

Design Features

Construction

  • Aluminum or Stainless Steel frame
  • Stainless Steel Arms & Shaft Assembly
  • Non-woven Textile
  • Lite-Foam or Neo Glide (optional)
  • Hydraulic Drive

Standard Dimensions

Operating Space 24’ (732 cm)
Standard Vehicle Clearance 90” (229 cm)
Optional Vehicle Clearance 96” (244 cm)
Width 15’ (457 cm)

StackNScrubBrushBrochure

Stack-N-Scrub Brochure
