Water Wizard Combo Arch
Pack the most cleaning power with the Combo Water Wizard Arch!

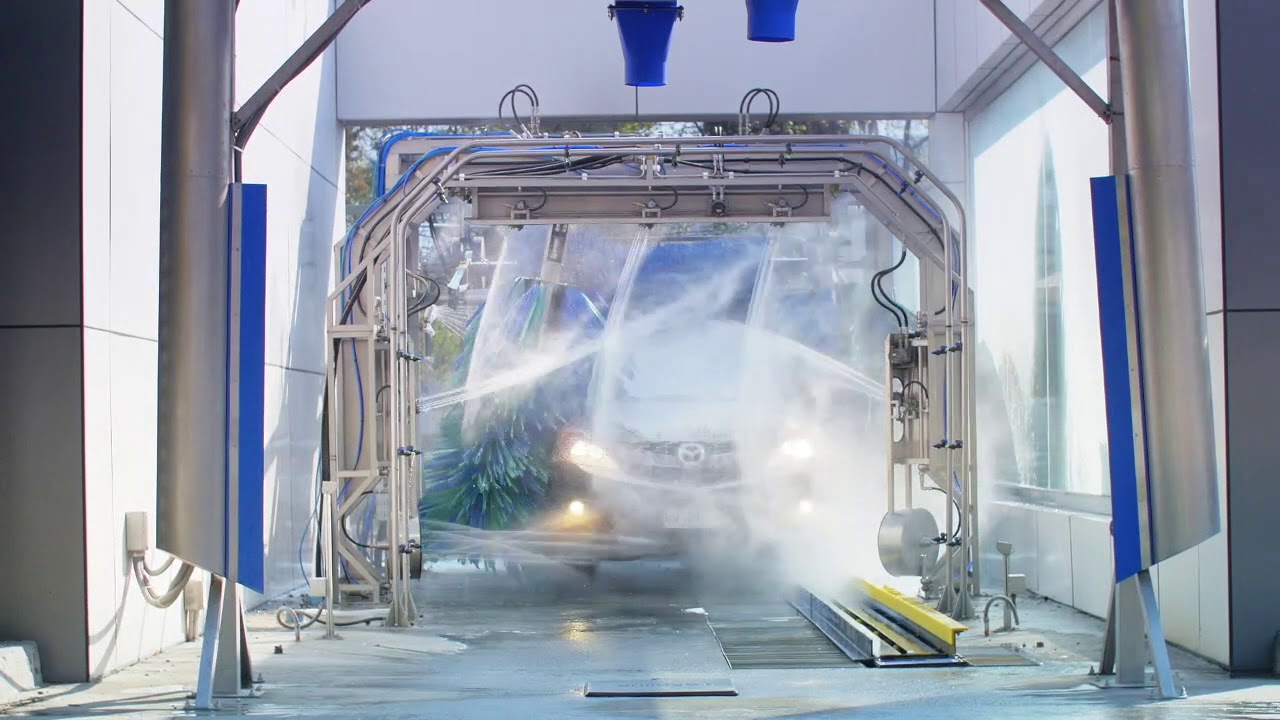

The Hanna Combo Water Wizard Arch provides high pressure wheel washing as well as total vehicle coverage. The Combo unit utilizes Hanna’s exclusive spray head with multiple zero degree nozzles to deliver a concentrated blast of water. The Wheel Washer creates maximum impingement and maximizes dwell time through the use a rotating manifold that pivots to follow the front and rear tires. The top manifold oscillates left and right and the side manifold up and down scrubbing the complete vehicle surface. The combo unit is the ideal choice when conveyor space is limited.
- Stainless Steel Frame
- Optional Stainless Steel “Skins” w/ Graphics
- Hydraulic Drive or Electric Drive
Operating Space: | 8’ (243 cm) |
Width: | 157” (398 cm) |
Length: | 20” (51 cm) |
Height: | 113” (287 cm) |
Height Clearance: | 96” (243 cm) |
- Hydraulic or electric driven oscillating motion
- Air operated pivots
- Five oscillating spray heads
- Four wheel washing spray heads
- Custom graphics available
Hydraulic Flow: | 3.0 GPM @ 200 PSI (11.4 LPM @ 14 BAR) |
Electrical: | 60 Watts @ 24 VAC |
Air: | Less than 1 SCFM @ 90 PSI |
Water: | 35 GPM @ 1000 PSI (133 LPM @ 69 BAR) |
- 5 - 1/8 HP Motors Included
- 208/230/380/415 Volt 3-Phase
- .94/.90/.54/.50 Amp Per Motor
